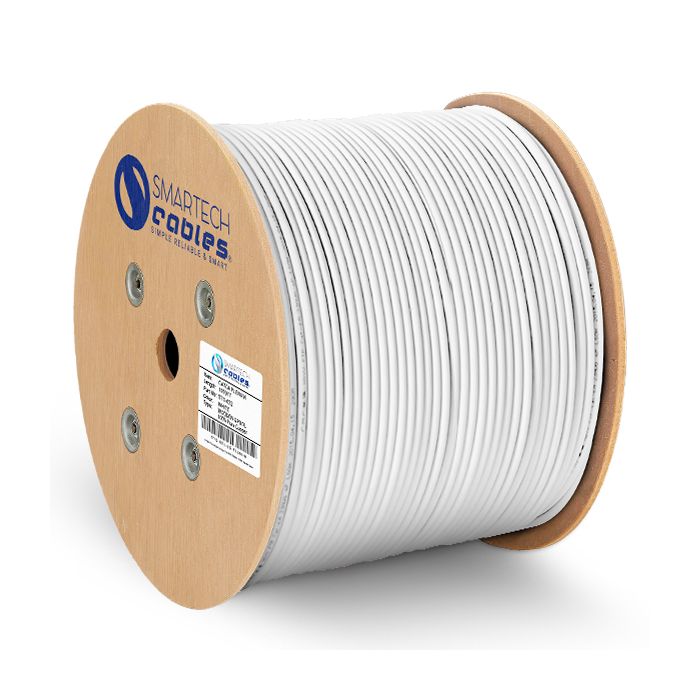

Cat6a Bulk Cable 1000ft Solid Copper White Spool

Availability:

47 in stock


$329.99

BlueWhiteGreenRedYellow
Clear

Cat6a Bulk Cable 1000ft Solid Copper:

We take pride in our quality cables and other connectivity products. This cat6a bulk cable 1000ft solid copper white, blue, green, yellow is tested against its best specifications- it is a high-performance Ethernet cable featuring 100% pure solid copper, high data transfer rates, high bandwidth capacity, better characteristics for cross-talks, reduced errors, improvised data integrity, low bit error rate, plenum-rated insulation, and affordability. It meets (and at instances exceed) market standards. This is an ETL verified, RoHS compliant and cable which conforms to TIA/EIA 568.2C standard.

It features twisted pair design- a set industrial standard because of which cross-talk between adjacent wires can be minimized and as of consequence, quality transmissions even at higher frequencies or at longer distances is achieved. It has 23 American Wire Gauge AWG, four unshielded twisted pairs, and eight solid copper conductors. The conductors used within this cable are 100% pure solid copper which acts as an additional boost for better conductivity compared to the cables which have copper clad aluminum for conductors. As for its speed and transfer rates, it has been capacitated to support up to 750 MHz bandwidth speeds and data transfer rates of 10 GB for a maximum distance of 100 meters. This cable guarantees high-speed data transfer for 10BASE-T, 100BASE-TX fast Ethernet, 1000BASE-T (IEEE802.3), 100VG-AnyLAN (IEEE802.12), 550 MHz Broadband Video Voice, T1, ISDN 155/ 622 Mbps, and ATM PoE (Power over Ethernet). And unlike the previous cables, this cat6a bulk cable 1000ft solid copper white allows 10GBASE-T and all other LAN applications for a maximum distance of 100 meters.

The outer jacket of this cable is a plenum rated jacket in standard white color. It is designed to address applications whereby plenum-rated is a requirement. Our cat6a bulk cable 1000ft solid tested for CMP plenum-ratings conforms to the National Fire Association Standard NFPA 90A and therefore, it is perfect for plenum spaces. Plenum spaces are easy to catch fire given the presence of high oxygen levels due to air circulations in these spaces. This low smoke cable has special insulation and coatings on it containing fire-retardant properties. Also, it has a plus point of not burning off with fumes injurious to human health. In addition to that, due to tighter twisted pairs, thicker sheathing, and 100% pure solid copper used in this cat6a plenum cable white, it can ideally provide more protection against Power Sum Equal-Level Far-End Crosstalk (PS-ELFEXT), Near-End Crosstalk (NEXT) and Alien Crosstalk (AXT).

This cat6a bulk cable comes in 1000ft length and is supplied in 1000’ spools. The outer jacket is available in other colors as well. The length of the cable bulk is measured and marked at every foot: you can easily take out the length you need, cut it, terminate it with a connector, and store the leftover for future use.

SKU: STC-A602-22 Categories: , Tag:
>> PoE: IEE 802.3af / IEEE 802.3at (PoE+)
>> Color: Blue, White, Yellow, Red, and Green
>> Cable: Cat6a CMP O.D. 8.1 ± 0.2 mm
>> Conductor: O.D. 1.06 – 1.10 mm – 4 Twisted Pairs
>> Frequency: 750 MHz
>> Wire Gauge: 23 AWG
>> Applications: IEEE 802.3 an, 1GB, 10GBase-T and Legacy Speeds
>> Bending Radius: 4 x Overall Diameter
>> Spline Separating: 4 Pairs
>> Installation Temp: 0°C to 60°C
>> Length & Package: 1000 Feet on Wooden Reel
>> Jacket & Shielding: FEP – Unshielded
