Cat6 Plenum Bare Copper 550 Mhz 23 Awg Ethernet Cable Pull Box

In stock
SKU
STC-61X
Rating:
99 % of 100
As low as $185.50 Regular Price $243.99
  • 1/10GbE speed with 550MHz bandwidth with 23AWG core size
  • Comes in Easy Pull Box with 'ft' markings for easy installation
  • Tested with Fluke DTX-1800 and show exceptional performance
  • Non-toxic smoke CMP jacket, FEP material UV indoor cable
  • Why Smartech Cable - For simple, smart and reliable performance

Upgrade Your Home or Office Network with Industrial-Strength Cat6 Plenum Cable


Wired cables are the right source for your networking solutions. They retain maximum data flow without data degradation. You should use this cable for high ethernet applications or to get gigabit speed for longer runs. Now let’s know more about Cat6 plenum bulk cable, the rate and ideal installation length, and how to buy the Cat6 plenum-rated pure copper cable. Here is what you need to know — Best Cat6 plenum cable.Cat6 Plenum Bare Copper Banner Image

What Is Category 6 Ethernet Cable?

The cat6 ethernet cable is a very famous networking cable to be used in commercial, residential, and industrial applications. The cable's internal features include the twisted pairs that are necessary to pass electrical signals without being affected by crosstalk or interference.



What’s Inside The Cable Jacket

The internal conductor of the plenum cat6 cable is the same as all ethernet cables but some of the features are more enhanced and that is why the cable is more secure. If we peel the cable jacket – 8 color-coded wires can be seen twisted with each other to form 4 twisted pairs.

  • 4 twisted pair cable
  • Tightly twisted pairs than Cat5
  • Ripcord for peeling cable jacket
  • 23 AWG conductor size
  • Spline (Cable Separator) to overcome pair-to-pair crosstalk
  • Pure copper conductor

Also, the cable has an internal conductor made up of pure copper. The copper conductor cables are less expensive but provide future-proofing to your cabling infrastructure and have the potential to pass electrical signals with minimum signal resistance.

Transmission Speed — Cat6 Plenum Cable

As compared to other counterparts the cat6 plenum cable 1000ft shows enhanced characteristics. The ideal length of ethernet cable is 100 meters (328 Ft). You can use this cable for longer and shorter distances. If you are going to install cable at 100 meters, you will get 1 Gbps speed. Likewise, if you are going to install cable for less than 100 meters (50 meters 164ft). At 50 meters you will get 10 Gbps speed. The best cat6 plenum cable is likely to deliver the highest bandwidth 550 MHz. The cable meets the stringent properties and therefore is an ideal option to buy for your network.

Applications Of Cat 6 Ethernet Cable

The speed is the right form that we need for working or sending large files in less time. Therefore, the Cat 6 cable is just the right ethernet cable to cater to your fast ethernet applications. Some of the main advantages of Cat6 copper cable are.

  • 100BASE-T (Fast Ethernet)
  • 1000BASE-T ( Gigabit Ethernet)
  • 10GBASE-T (10 Gigabit Ethernet)
  • Audio/Video Streaming
  • ATM 155
  • Gaming consoles
  • PoE/+/++ applications

Cat6 can also be used for Token Ring (Voice Protocols) due to its increased conductivity. Cat6 also shows less insertion loss due to electrical pulses (Data Packets). If you are planning to shift to upgrade cable then this cable is for you. As of now, these are some of the major aspects of Cat6-rated plenum cable. Continue reading to elevate the characteristics of the outer jacket of the ethernet cable — Plenum.

What is Plenum Space?

The plenum is the space in the building where there is maximum airflow traveling through air ducts, ventilation systems, and air conditioning. All these spaces are more likely to connect with one another to create a passage for wind and ventilation. So, in such spaces, there are high chances of fire incidents due to the presence of oxygen.  With such high risk, a fire-resistant material is used to restrict fire progression activity in the plenum spaces. However, understanding the industry’s needs our Cat6 plenum cable 1000ft is fabricated in China under the supervision of cable experts. The Cat6 ethernet cable outer jacket (Plenum) is made up of FEP (Fluorinated Ethylene Polymers).1000ft Cat6 Plenum Bare Copper Banner images

The (LSZH) properties of the cable also emit non-toxic smoke which is a foremost important part of plenum spaces. Cat6 plenum bare copper cable can also bear UV radiations but it can only be suitable for indoor installations. With such properties, Plenum offers some major benefits that could secure your wiring.

  • Fire Safety
  • Compliance with building codes
  • Non-toxic air quality
  • Min. risk of spreading flames
  • Protection of HVAC systems
  • Prevention of regulatory penalties

Where To Install Bulk Cat 6 Plenum Cable

This indoor jacket (Plenum) is used to install in the horizontal spaces of the building that include — air ducts, above-raised floors, and drop ceilings, and also you can use it to install in non-plenum spaces of the building – riser spaces.  Keep one thing in mind while installing Cat6 cables, do not stretch the cable too tightly or make it limited to 25 lbs or (110N) so that the conductor inside the cable won't break. There are often sharp bends in the building or room. You need to be very careful not to bend the cable to its extreme limit. Or the conductor inside the cable will break resulting in slow speed.

Packaging — The Final Stage

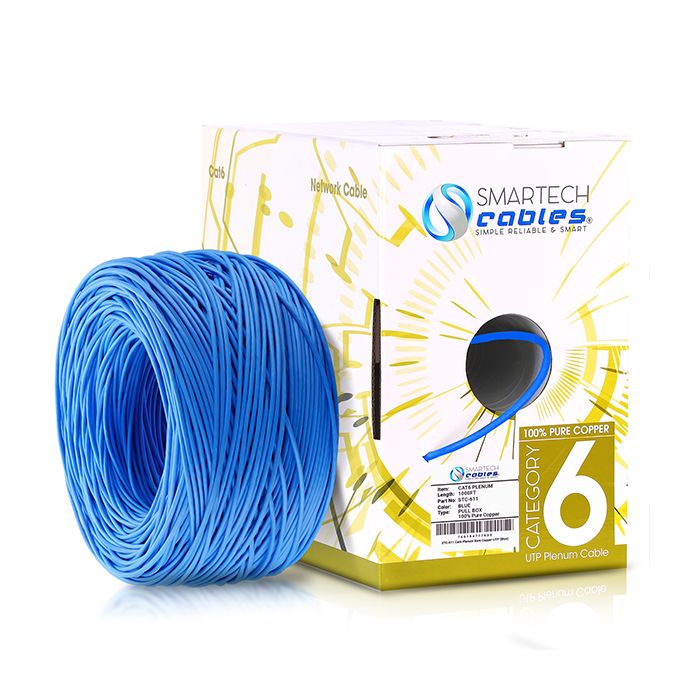

Cat6 CMP cable comes in an easy-to-pull box so that the user may unroll the cable roll quite easily and for cable length identification the entire length of cable has sequential ‘Ft” markings. This tangle-free packaging can save your installation time and also cable your infrastructure.

 To buy cat6 plenum cable 1000ft you can visit our vast range of cat6 cables to adopt for your networking solution. You will work more efficiently when there is no worry about ethernet cable.

How To Identify Cat6 Plenum Jackets?

The decision is quite tough for those who are less likely to know about the ethernet cable features. To find which Cat6 cable is plenum rated simply you need to read the jacket printed text implanted during manufacturing (CMP, PL, PLM). or still if you are unable to read consult the cable manufacturer or seller. Good Luck With Your Buying.

Specifications

Weight 33 lbs
Dimensions 11 × 17 × 17 in
Color Blue, White, Green, Red, Yellow, Grey, Black
Cable Jacket UTP Plenum
Conductor 100% Pure Copper Solid Conductor
Frequency 550MHz
Installation Temp 0°C to 60°C
Length 1000 FT
Pairs 4 Twisted Pairs
Package Easy Pull Box
Standard Compliances FCC, CE, CSA, ISO/IES, RoHS
