UTP Patch Cord Cat6 Blue 10 Inch, 1.5Ft, 3Ft, 4.5Ft, 5Ft, 9Ft, 12.5Ft, 18Ft, 21Ft, 30Ft, 45Ft

Availability:

20 in stock


Compare

$0.79$6.85

10 Inch1.5 FT3 FT4.5 FT5 FT9 FT12.5 FT18 FT21 FT30 FT45 FT
Clear

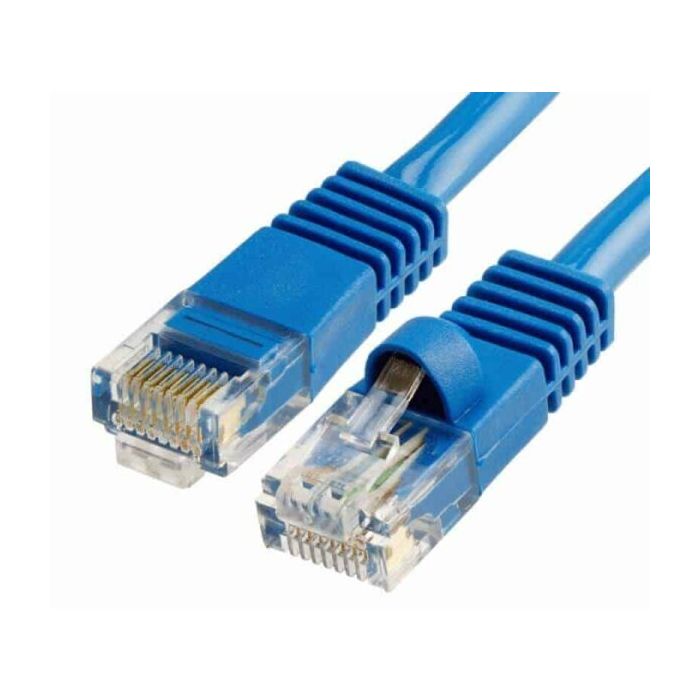

UTP Patch Cord Cat6 Blue:

At Smartech Cables, we want to you to experience connectivity at our terms. We define connectivity in terms of quality and affordability. We aim to establish a new trend where we want to make available for you finest quality cabling solution at the lowest affordable price possible. The cable is a category 6 or UTP patch cord cat6 blue that is 10 Inch, 1.5Ft, 3Ft, 4.5Ft, 5Ft, 9Ft, 12.5Ft, 18Ft, 21Ft, 30Ft, 45Ft feet long. On the outside of this patch cable, the jacket is made of polyvinyl chloride PVC and it is in blue and white color. The external jacket features the right amount of thickness and durability. The physical measurement of this cable makes it accommodate itself in limited spaces. Apart from the blue color of this particular patch cable, there are various other colors available as for the external jacket. Therefore, you can easily color-code your set up the way you need it to be by choosing the color of your choice from the range. Furthermore, we have several different lengths available to suit your diverse cabling needs.

To understand better about the cable at hand, you need to understand what a UTP patch cord cat6 blue and white actually is. Simply, it is a smaller version of standard 1000ft cat cable bulks. In limited space, such cables happen to be very convenient. A patch cable is also referred to as a patch cord or a patch lead. It is designed to for quality connections between an electronic device (for instance a computer) and patch panels, and switches and patch panels for the purpose of signal routing.

The copper conductors used in our UTP patch cord cat6 blue and white 10 Inch, 1.5Ft, 3Ft, 4.5Ft, 5Ft, 9Ft, 12.5Ft, 18Ft, 21Ft, 30Ft, 45Ft color is of 23 (AWG) American Gauge Wire. The pairs are twisted so that unwanted interferences from nearby pairs do not confuse and overlap the transmission of data. The tighter these twists are the better is the prevention against the unwanted effect. In technical terms, this unwanted effect (which may include electromagnetic interference (EMI), signal leakage or signal bleeding) is referred to as cross-talk. Cross talk can potentially risk the smoothness of your data transmissions. It can bring about errors in it. Our UTP patch cord cat6 blue is ideal in such a situation as it is designed, incorporating tighter twists and stronger and thicker sheathing, in such a way that it minimizes cross talk to an acceptable level. Conclusively, this cable is more resistant to Near-End Crosstalk (NEXT) and Alien Crosstalk (AXT), and because of that greater data integrity with reduced packet loss is promoted.

This particular cat6 patch cable 10 Inch, 1.5Ft, 3Ft, 4.5Ft, 5Ft, 9Ft, 12.5Ft, 18Ft, 21Ft, 30Ft, 45Ft in blue color has exceptional electrical specifications in which it not only meets the industry standards but also exceeds them. The base standard base laid down by TIA/EIA for a cat6 is to support the performance of up to 250 MHz but our 1000ft cat6 plenum cable green color is rated to support performance up to 550 MHz. And concerning the data transfer rate, it can handle up to 10 Gbps. And, with that this cable in blue color is TIA/EIA verified, RoHS Compliant. Furthermore, because of these fine electrical capacity to support high transfer rates, bandwidth and so on, it can handle the 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3 Gigabit Ethernet), TP-PMD (ANSI X3T9.5), 1000BASE-T (Gigabit Ethernet GbE), and 155 Mbps ATM and 622 Mbps ATM PoE(Power over Ethernet).

SKU: N/A Category: Tag:
Velocity Ratio: 65%
Wire Gauge: 23 AWG
Frequency: 550 MHz
Spline Separating: 4 Pairs UTP
Installation Temp: 0°C to 60°C
Cable: Cat6 PVC 0.57±0.01mm
Jacket & Shielding: PVC Jacket – Unshielded
Standard Compliances: ISO/IES ROHS Compliant
Conductor: 0.57±0.01mm – 4 Twisted Pairs
Length 10 Inch, 1.5Ft, 3Ft, 4.5Ft, 5Ft, 9Ft, 12.5Ft, 18Ft, 21Ft, 30Ft, 45Ft – EZ Pull Packet
Color: Blue, White, Yellow, Green, and Red
Applications: 100 Base-T4 – 100 Base-TX – 100VG – Any LAN – 1000 Base-T (Gigabit Ethernet) – 155 Mbps ATM – 622 Mbps AT
