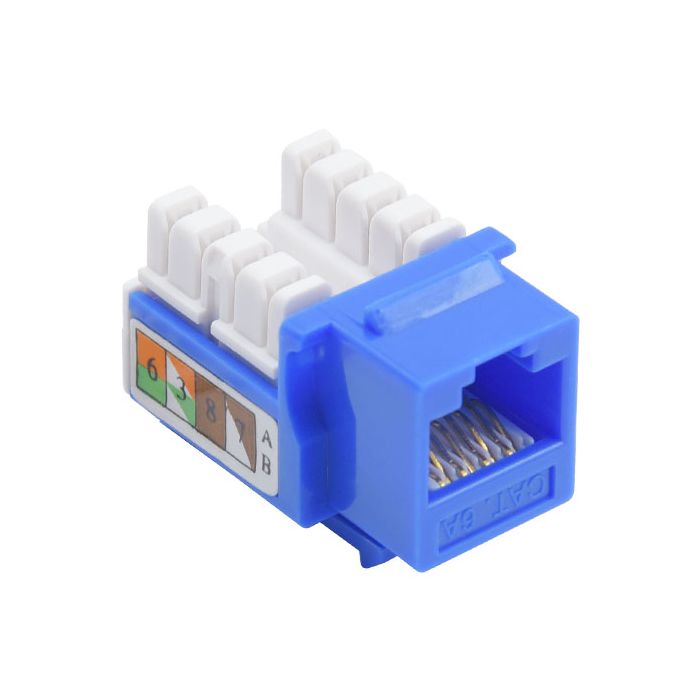

Cat6a Rj45 keystone Jack 90-Degree UTP Punch Down 110

In stock
As low as $16.08
  • Cat6a Keystone Jack
  • UTP 110 Punch-down design
  • 90-degree termination
  • 26-22 AWG conductor
  • Bronze 6µ gold plating

Conquer Tight Spaces with Speed and Precision – Cat6a UTP 90° Keystone Jack

Upgrade your network connections with the Cat6a 90° UTP Punch Down Keystone Jack – a space-saving marvel of speed and reliability. This innovative connector packs all the punch of Cat6a performance into a compact, angled design, making it ideal for tackling cramped cabinets and cluttered workspaces.

Unleash Blazing Speeds and Conquer Tight Corners

  • Cat6a Powerhouse – Experience future-proof speeds of up to 10 Gbps for seamless streaming, lag-free gaming, and lightning-fast data transfer.
  • Space-Saving Design – The ingenious 90° angle reduces cable bend radius, making it perfect for cramped installations and improving cable management in tight spaces.

Effortless and Reliable Connections

  • 110 Punch-Down Termination – Achieve quick and secure connections with the industry-standard 110 punch-down method. Eliminate the need for soldering or crimping tools, saving time and effort.
  • Phosphorus Bronze and 6µ Gold-Plated Contacts – Enjoy unwavering signal integrity and exceptional corrosion resistance thanks to the premium combination of durable phosphorus bronze and corrosion-resistant gold plating.
  • Wiring Standards – It observes both T568A and T568B wiring schemes and is suitable for 23 and 24 AWG standard diameters.

Built for Lasting Performance and Peace of Mind

  • High-Quality Construction – Robust materials ensure long-lasting performance and unwavering stability, even in demanding environments.
  • Industry Standards – Complies with strict industry standards, guaranteeing compatibility with most network equipment and ensuring fire safety compliance.

Benefits at a Glance

  • Cat6a performance for blazing-fast 10 Gbps data transfer.
  • 90° angle design for effortless cable management in tight spaces.
  • Quick and secure 110 punch-down termination.
  • Durable phosphorus bronze and gold-plated contacts for robust connections.
  • Industry-compliant and RoHS verified for assured compatibility and safety.

Don't compromise on speed or space. The Cat6a UTP 90° Keystone Jack is the perfect solution for high-performance networking in any environment. Order yours today for better speed and conductivity.

Weight 0.5 lbs
Dimensions 3 × 3 × 4 in
Pack of Pcs: 25 Piece, 50 Piece, 10 Piece
Color Type: Blue, Green, Red, White, Yellow
Connect Resistance: < 20mΩ IEC 60512-2-1 Test 2a
Input/Output Resistance: < 200mΩ IEC 60512-2-1 Test 2a
Insulation Resistance: > 500MΩ at 100V DC IEC 60512-3-1 Test 3a
Maximum Voltage Rating: >1000V DC contact to contact >1500V DC contact to screen
Mating Cycles: >1000
Operating Temperature: – 40 to + 70°C
Current Capacity: <0.175 mA per conductor
Operating voltage: <72V DC
Power Capacity: <30W
Vibration Performance: < 10μs (3 axis) IEC 60512-4-1 test 2a
IDC Connection: Bronze + Gold plating / Cu + SnPb 80μ
Conductor Sizes: 26 to 22 AWG
Contacts: Bronze + 6 Microns Gold plating / Ni + Au 1.2μm
Connector Body: ABS or PC UL94V0
Color code: T568 A or B
