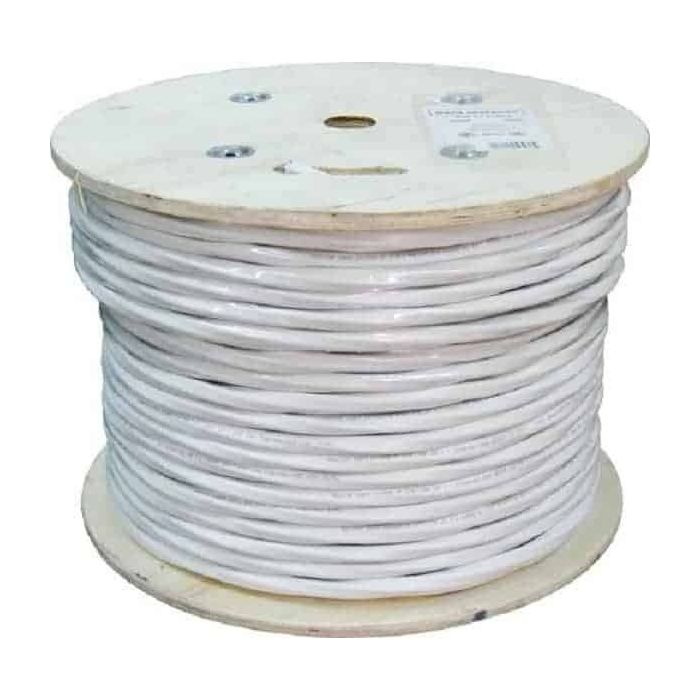

CAT6A Plenum UL-listed Cable Unshielded (UTP) White

Certified Cable UTP Cat6a for High-Speed Networking

Our Cat6a UTP cable is engineered for demanding data environments where speed, bandwidth, and safety are equally important. Designed with four unshielded twisted pairs and a 23 AWG bare copper conductor, it delivers stable transmission for high bandwidth applications across residential, commercial, and industrial installations.

This cable supports modern Ethernet standards while providing the flexibility needed for long cable runs. Whether you need a box of Cat6a cable for a new installation or an upgrade to an existing network, Cat6a plenum cable is built to handle today's networking requirements and future expansions.

Built for Speed and Bandwidth

This Cat6a U/UTP cable supports data transfer rates up to 10 Gigabit Ethernet over distances of up to 100 meters. With a bandwidth rating of 750 MHz, it can efficiently manage large file transfers, cloud connectivity, video streaming, and data-intensive business operations.

Its spline separator helps reduce internal crosstalk between pairs, allowing signals to remain consistent even in high traffic environments. The tightly twisted conductors further enhance transmission quality while minimizing attenuation.

Key Features

• 23 AWG bare copper conductors.
• PoE, PoE+, PoE++ up to 100W.
• Supports up to 10 Gigabit Ethernet.
• 750 MHz bandwidth capacity.
• Spline design to reduce crosstalk.
• CMP plenum rated fire resistant jacket.

Why Choose a UL-Listed Cat6a Unshielded Cable?

A UL-Listed cable has been independently tested and certified by Underwriters Laboratories to meet established safety and performance standards. This certification provides confidence that the cable has undergone rigorous evaluation for construction quality, fire safety, and operational performance.

For network installers, contractors, and facility managers, a UL-Listed product helps ensure compliance with installation requirements while supporting long term network stability. When selecting a Cat6a unshielded cable, UL certification serves as an important indicator of product quality and consistency.

Benefits of the Plenum CMP Jacket

The cable features a CMP rated plenum jacket manufactured from Fluorinated Ethylene Propylene (FEP) material. This specialized jacket is designed for use in air handling spaces where fire safety is a critical requirement. FEP material offers excellent flame resistance and helps limit the spread of fire while producing low smoke emissions.

Plenum rated cable is commonly selected for installations where cables pass through areas with significant airflow. Its enhanced fire resistant properties make it suitable for environments that demand higher safety standards than standard cabling solutions.

Installation Environments for Cat6a UTP Cable

This cable UTP Cat6a is an excellent choice for locations where plenum rated cabling is required. It can be installed in:

• Drop ceilings.
• Plenum shafts.
• HVAC air return spaces.
• Ventilation pathways.
• Raised floors.
• Attics.
• Horizontal and vertical cable runs.

Compliance with ANSI/TIA-568.2-C further demonstrates its suitability for structured cabling systems used in professional networking environments.

Order a Box of Cat6a Cable for Your Next Project

Designed for high speed data transmission and advanced Ethernet applications, choosing this cat6a UTP cable provides the performance needed for modern network infrastructure.

The combination of 10 Gigabit support, UL certification, plenum safety rating, and high bandwidth capacity makes it an ideal solution for organizations seeking dependable long-term connectivity from a Cat6a 1000ft box. Place an order or contact us for more information.

FAQs

What is a Cat6a U/UTP cable?

A Cat6a U/UTP cable uses unshielded twisted pairs to support high-speed Ethernet connections while reducing crosstalk through its internal cable design.

Is a Cat6a UTP cable suitable for 10 Gigabit Ethernet?

Yes. A Cat6a UTP cable supports speeds up to 10 Gbps with bandwidth up to 750 MHz for demanding network applications.

What is the advantage of a Cat6a unshielded cable?

A Cat6a unshielded cable is lightweight, easy to install, and delivers stable performance for structured cabling in low-interference environments.

Where can a Cat6a plenum cable be installed?

Cat6a plenum cable is designed for air-handling spaces such as drop ceilings, HVAC return areas, raised floors, and ventilation pathways.

Why choose a Cat6a 1000ft box?

A Cat6a 1000ft box provides enough cable for large installations, minimizes waste, and allows smooth cable pulls during structured cabling projects.
