Bulk Cat5e Plenum Pure Copper Cable 1000ft 350 MHz 24 AWG UTP Pull Box

Out of stock
100 % of 100
  • Cat5e CMP, Durable Jacket, (LSZH) FEP Material, Fire-Proof
  • 24AWG, Pure Copper Cat5e, 350MHz Bandwidth, 100Mbps/1GbE Speed
  • Fluke DTX-1800, RoHS, ISO 9001:2015, (ANSI/TIA/EIA) Certified
  • Easy Pull Box Packing, Ft markings, Tangle-free Fitting
  • Smartech Cables: Networking With Precision and Accuracy

Get the Power you Deserve with Cat5e Plenum Pure Copper Cable.

We are striving continuously to bring the most sophisticated ethernet cables to help out in your daily operations. Likewise, our China-manufactured Cat5e Plenum Pure Copper Cable is just what you need for gigabit networking. The cable is good to connect multiple devices at once and the solid copper conductor enhances its reliability.

Bulk Cat5e Plenum Pure Copper 1000ft Cable desciption Image

What Is Cat5e Pure Copper Cable?

The category 5e is an enhanced version of its previous cable cat5. This diligent cable observes twisted pairs to transfer signals in a proper manner. There are a total of 8 conductors mostly color coded and all these cables emerge together to form 4 twisted pairs. These twisted pairs reduce the crosstalk and interference present in the environment. The cable has rip cord inside the cable jacket to peel off the cable jacket quite easily and the cat5e pure copper cable’s conductor diameter is 24 AWG and is responsible for delivering high bandwidth.

Lead the way by adopting the right cable for your cabling needs

Order now to enhance your networking speed and productivity with this gigabit specs Cat5e solid cable.

Speed Ranking Of Pure Copper Cat5e Cable

Wired cables are realistic and authentic in terms of providing actual speed as set by your ISP (Internet Service Provider). It shows maximum quality in transferring signals from one point to another. In order to achieve high network performance – order cat5e pure copper cable Lets see what Cat5e copper cable is capable of in terms of speed. The cable observes two length specifications under which it delivers the maximum speed. As of 100 meters, the cable provides 100 Mbps speed and if the 50 meters length is used for installation the cable delivers 1000 Mbps speed (1 Gbit/s).  Another improved spec of cat5e copper cable is its bandwidth of 350 MHz to support (IEEE802) fast ethernet applications. 10/100/1000BASE-T, audio/video streaming, PoE applications (Surveillance).

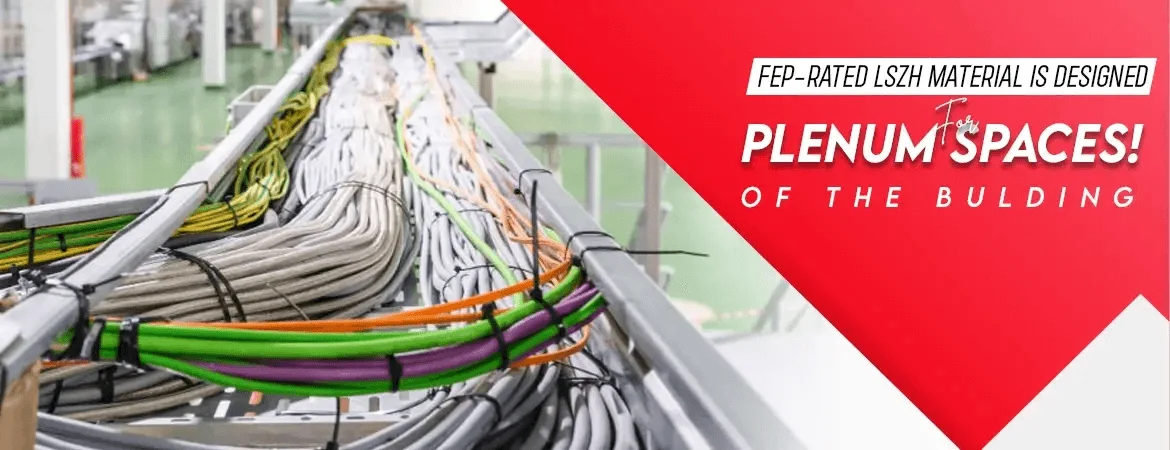

What Is a Plenum Jacket? How Does It Define Safety?

Physically all ethernet cables look the same if we do not consider any ratings regarding the plenum or riser outer jacket. But in reality, the outer jacket is of great importance to choose the cable installation location according to the need.  For plenum rated cat5e cable, they are specially designed to meet the stringent fire safety ratings for installation in the building or in offices. The cable is of great use to install in horizontal spaces. The material used to manufacture this jacket is FEP (Fluorinated Ethylene Polymers) – a highly flame resistant jacket indeed. It acts as a self fire extinguisher if there is a chance of fire progression. The plenum jacket also protects the conductor from any major damage. You can see while terminating cables with RJ45 connectors the conductors are so thin that they could break easily if not properly handled or crimped. Therefore, the outer jacket of the cable strengthens the cable for strain proof – but not more than 110 Newton or 25 lbs.Bulk Cat5e Plenum Pure Copper 1000ft Cable Desciption Image 2

Where To Install Cat5e Plenum Pure Copper Cable?

To install cat5e plenum cable, first see the cable specifications either plenum (CMP) or riser (CMR). Here we will discuss the plenum location. In the buildings or offices there are horizontal spaces (ventilation, air duct, drop ceilings, and HVAC system) with maximum airflow and oxygen. Such spaces are more fire sensitive.

Therefore, plenum cables are used to install in air ducts, crop ceilings and above raised floors within the building to limit the chances of fire ignition. Plenum rated cat5e is also UV-resistant and bears extreme temperatures and climatic conditions.  The plenum jacket is used for indoor installation where this jacket shows maximum lifespan. Refrain from using this cable outdoors for connecting multiple buildings as they will cost you high charges in planting the cables.

What Are The Features Of Cat5e Pure Copper Cable?

The cat5e reflects some of the major features and that is why it is a foremost choice of every user besides speed specs set by ISP. The following are the core features of Cat5e solid copper cable.

  • Pure copper conductor for excellent performance
  • 1 Gbit/s speed
  • 350 MHz bandwidth
  • 24 AWG diameter of conductors
  • Multiple colors for cable management
  • 1000 ft easy to pull box tangle free packing
  • Industry standard cable for safety
  • Twisted pair design to cancel crosstalk and interference
  • Penum jacket for fire security

These are the major features of the Cat5e plenum cable. Order this most advanced ethernet cable to observe streamline networking experience.

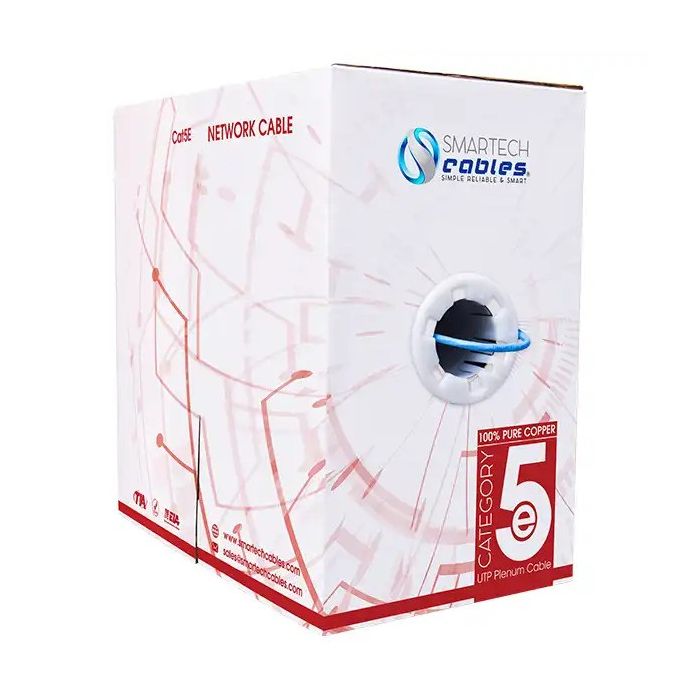

Convenient Packing

For users convenience the pure copper cat5e cable is packed in easy-to-pull box packaging. The entire cable is sequentially marked with “ft” to identify the cable's length. This tangle-free packing will ease your installation and save much effort. Also, you can store this 1000ft bulk cat5e cable for your next installation if necessary. So what are you waiting for? Order this gigabit specs cat5e ethernet cable in pure copper conductor. You are just one click away to place an order and rest assured that you will get the right quality cable. Buy now.

Weight 23.6 lbs
Dimensions 11 × 15 × 15 in
Conductor: 100% Pure Copper Solid Conductor
Frequency: 350MHz
Installation Temp: 0°C to 60°C
Length: 1000 FT
Pairs: 4 Twisted Pairs
Package: Easy Pull Box
Standard Compliances: FCC, CE, CSA, ISO/IES, RoHS
Wire Gauge: 24-AWG
Color: Blue, White
